At a glance

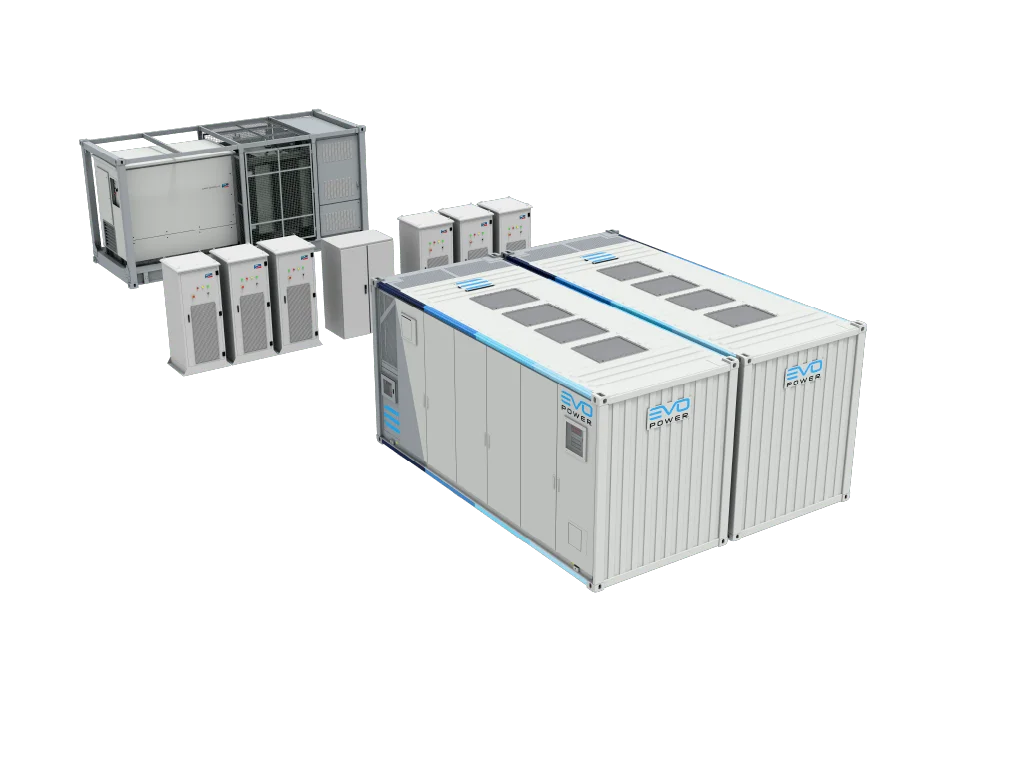

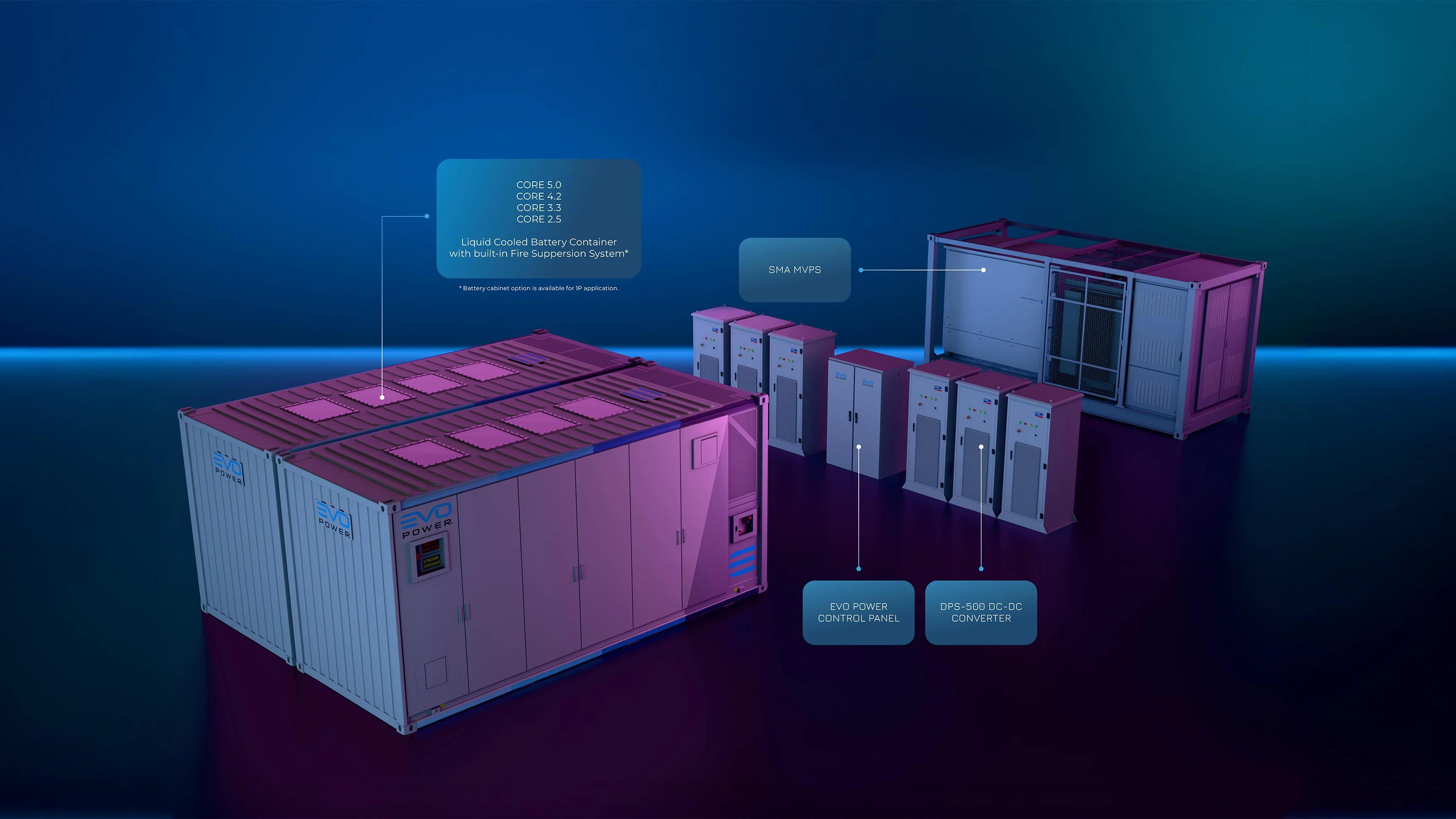

Configuration DC coupled 1,4,5 or 6 battery storage containers

Max continuous power 500kW at 1,000 VDC

Nominal energy 379.3 kWh / 3,343 kWh / 4,179 kWh / 5,015 kWh

Chemistry Liquid-Cooled, Lithium-Iron Phosphate (LFP)

Safety Features Built-in heaters, chillers, and fire suppression. IP55 rated

Dimensions 12,100 x 2,500 x 2,540 mm

Locally designed, tested and manufactured to stringent quality and safety standards.

DC Coupled storage allows for PV array oversizing by capturing the "clipped" energy and discharging it into the evening peak.

Liquid cooled LFP battery technology with built in thermal management system, fire-suppression system, and market leading performance warranties.

Ancillary services such as FCAS, Energy Arbitrage etc. Clipping recapture allows for time of use PPAs, PV Smoothing.

PartnerTeam Global Express

Capacity Installed500 kW / 1000 kWh

Commissioned2024

This project received funding from the Australian Renewable Energy Agency (ARENA) as part of the Driving The Nation fund.

PartnerFlow Power

Capacity Installed3 MW DC-DC / 6.7 MWh

Commissioned2023

PartnerEnel X

Capacity Installed2 × 550 kW / 1,000 kWh

Commissioned2023

PartnerEnergy Queensland, Energex

Capacity Installed5 MW / 10.435 MWh

Commissioned2024
